# Operating System Image Management
space.vars.product\_acronym Kubernetes allows the flexibility to use your own Operating System (OS) to use with your Kubernetes clusters. It requires Cluster API compliant operating system Images uploaded into the [Image Library](https://docs.platform9.com/private-cloud-director/images-and-image-library/image-library---images) specific to the Kubernetes version you want to deploy. The ability to bring your own OS to space.vars.product\_acronym gives you more control over dependencies in your environment and ensures compatibility with your existing applications. The OS you bring can be commercial or an open source distribution.
## Building OS image
You can use [OpenstackImageBuilder](https://image-builder.sigs.k8s.io/capi/providers/openstack) based on the [KubernetesImageBuilder](https://image-builder.sigs.k8s.io/introduction.html) to create your own OS images on your machine. space.vars.product\_acronym currently supports only **Ubuntu 22.04** as the OS for worker nodes and **qcow2** as the image format.
**Pre-requisites**: A Ubuntu 22.04 machine (server or VM with nested virtualization enabled) with required dependencies installed, including qemu and libvirt, as the Kubernetes Image Builder creates a local virtual machine and installs Kubernetes before packaging the VM as a qcow2 image file.
{% tabs %}
{% tab title="Bash" %}
```bash
apt install make jq unzip qemu-kvm libvirt-daemon-system libvirt-clients virtinst cpu-checker libguestfs-tools libosinfo-bin
```
{% endtab %}
{% endtabs %}
Steps:
{% tabs %}
{% tab title="Bash" %}
```bash
git clone https://github.com/kubernetes-sigs/image-builder.git
cd image-builder
make deps-qemu
PACKER_LOG=1 make build-qemu-ubuntu-2204
```
{% endtab %}
{% endtabs %}
Note: Looking at the output from `make deps-qemu`, if a warning is shown about installed components not being on the path, take note of the directory shown in the warning, and add it to the path using the following command.
{% tabs %}
{% tab title="Bash" %}
```bash
export PATH=$PATH:
```
{% endtab %}
{% endtabs %}
{% tabs %}
{% tab title="Example" %}
```bash
export PATH=$PATH:/root/local/.bin
```
{% endtab %}
{% endtabs %}
{% hint style="info" %}
**Info**
It is OK to repeatedly run `make deps-qemu` until it completes successfully.
{% endhint %}
The OS and its supported versions are defined in `images/capi/packer/qemu/`. Any modifications to the `build-qemu` command for building different OS versions can also be found there.
By default the image-builder will use the latest Kubernetes version. To build a specific Kubernetes version, update the version details in `image-builder/images/capi/packer/config/kubernetes.json` and run the `make build` command again.
{% tabs %}
{% tab title="Bash" %}
```bash
# cat image-builder/images/capi/packer/config/kubernetes.json
{
"crictl_arch": "amd64",
"crictl_sha256": "https://github.com/kubernetes-sigs/cri-tools/releases/download/v%7B%7Buser crictl_version}}/crictl-v{{user crictl_version}}-linux-{{user crictl_arch}}.tar.gz.sha256",
"crictl_source_type": "pkg",
"crictl_url": "https://github.com/kubernetes-sigs/cri-tools/releases/download/v%7B%7Buser crictl_version}}/crictl-v{{user crictl_version}}-linux-{{user crictl_arch}}.tar.gz",
"crictl_version": "1.29.0",
"kubeadm_template": "etc/kubeadm.yml",
"kubernetes_apiserver_port": "6443",
"kubernetes_container_registry": "GitHub - kubernetes/registry.k8s.io: This project is the repo for registry.k8s.io, the production OCI registry service for Kubernetes' container image artifacts ",
"kubernetes_deb_gpg_key": "https://pkgs.k8s.io/core:/stable:/{{ user kubernetes_series }}/deb/Release.key",
"kubernetes_deb_repo": "https://pkgs.k8s.io/core:/stable:/{{ user kubernetes_series }}/deb/",
"kubernetes_deb_version": "v1.29.11-1.1",
"kubernetes_goarch": "amd64",
"kubernetes_http_source": "https://dl.k8s.io/release",
"kubernetes_load_additional_imgs": "false",
"kubernetes_rpm_gpg_check": "True",
"kubernetes_rpm_gpg_key": "https://pkgs.k8s.io/core:/stable:/{{ user kubernetes_series }}/rpm/repodata/repomd.xml.key",
"kubernetes_rpm_repo": "https://pkgs.k8s.io/core:/stable:/{{ user kubernetes_series }}/rpm/",
"kubernetes_rpm_repo_arch": "x86_64",
"kubernetes_rpm_version": "v1.29.11",
"kubernetes_semver": "v1.29.11",
"kubernetes_series": "v1.29",
"kubernetes_source_type": "pkg",
"systemd_prefix": "/usr/lib/systemd",
"sysusr_prefix": "/usr",
"sysusrlocal_prefix": "/usr/local"
}
```
{% endtab %}
{% endtabs %}
## Uploading OS Images to space.vars.product\_name [Image Library](https://docs.platform9.com/private-cloud-director/images-and-image-library/image-library---images)
You can user the space.vars.product\_acronym UI or the CLI to upload an image to the [Image Library and Images](https://docs.platform9.com/private-cloud-director/images-and-image-library/image-library---images) in space.vars.product\_acronym. Please follow the instructions in the [Image Library and Images](https://docs.platform9.com/private-cloud-director/images-and-image-library/image-library---images) to import the generated qcow2 image into space.vars.product\_acronym.
## Adding required Properties to OS Images
space.vars.product\_name requires following properties to be present on the image to be used for creating Kubernetes Node VMs. These are required to identify the image build for a specific Kubernetes version.
| Property Key | Property Value |
| ------------- | ------------------------------------------------------------------------ |
| `k8s_version` | Kubernetes version in formation major.minor version. Eg `1.31` or `1.32` |

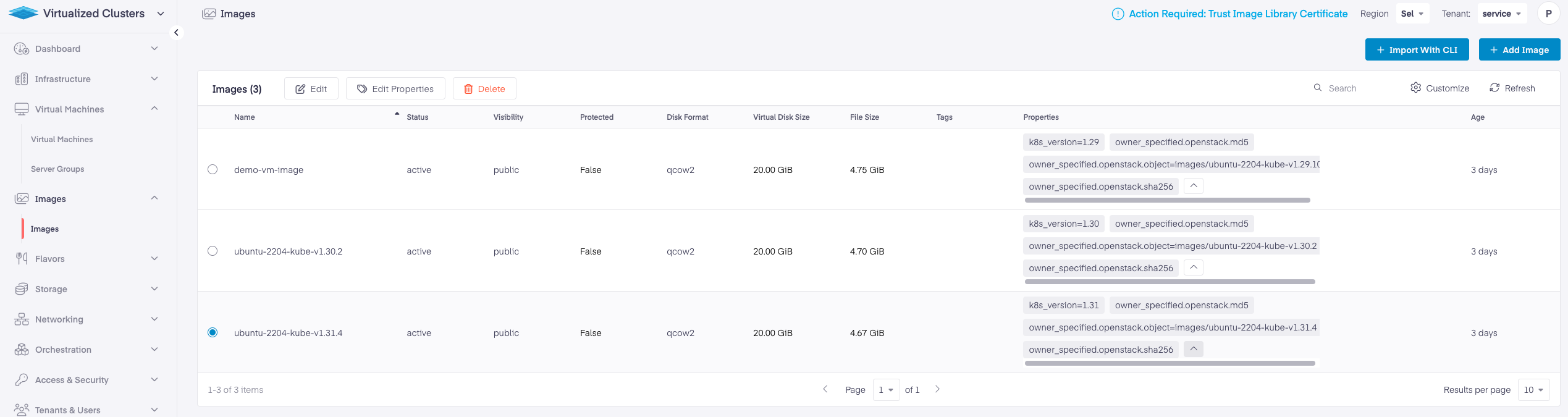

You can add the image property after the image is imported via the space.vars.product\_acronym UI. Go to the Virtualized Cluster > Images Page and select the image to add properties. Click on Edit Properties to add the desired key:value properties. Once the Properties are added, the image's properties should appear, as the example below.
